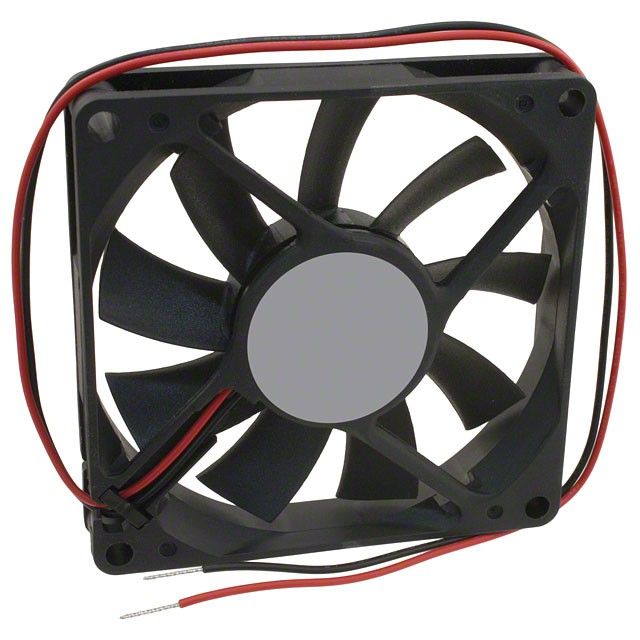

KD1208PHB1-A H.F
Data Sheet
Attribute
Description
Manufacturer Part Number
KD1208PHB1-A H.F
Manufacturer
Description
FAN 12VDC 80X15MM 35CFM 3RD WIRE
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Type | Tubeaxial | |
| DC Fan Bearing Type | Ball | |
| Voltage Rating | 12VDC | |
| Air Flow | 35.0 CFM (0.991m³/min) | |
| Static Pressure | 0.170 in H2O (42.3 Pa) | |
| Noise | 39.5 dB(A) | |
| Power | 2.90W | |
| RPM | 3300 RPM | |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | |
| Termination | 3 Wire Leads | |
| Size / Dimension | Square - 80mm L x 80mm H x 15mm W |
Description
Measures resistance at forward current Tubeaxial for LED or diode evaluation. Supports high-level output current indicated as 35.0 CFM (0.991m³/min). Peak Vce(on) at Vge 0.170 in H2O (42.3 Pa) for transistor parameters.
