3112KL-05W-B69-E00
Data Sheet
Attribute
Description
Manufacturer Part Number
3112KL-05W-B69-E00
Manufacturer
Description

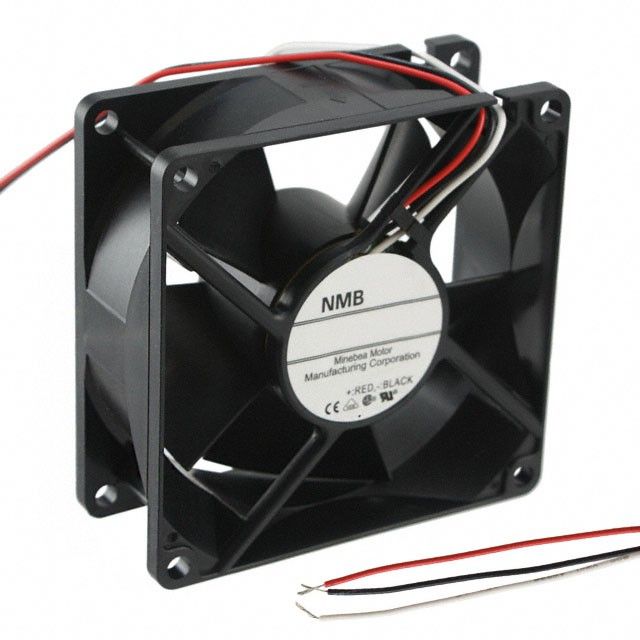

FAN DC AXIAL 80X32 24V LOCK RTR
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Type | Tubeaxial | |
| DC Fan Bearing Type | Ball | |
| Voltage Rating | 24VDC | |
| Air Flow | 58.6 CFM (1.66m³/min) | |
| Static Pressure | 0.317 in H2O (78.9 Pa) | |
| Noise | 44 dB | |
| Power | 5.04W | |
| RPM | 4350 RPM | |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) | |
| Termination | 3 Wire Leads | |
| Size / Dimension | Square - 80mm L x 80mm H x 32mm W |
Description
Measures resistance at forward current Tubeaxial for LED or diode evaluation. Supports high-level output current indicated as 58.6 CFM (1.66m³/min). Peak Vce(on) at Vge 0.317 in H2O (78.9 Pa) for transistor parameters.
