750813390

750813390

Data Sheet

Attribute
Description
Manufacturer Part Number
750813390
Manufacturer
WURTH ELEKTRONIK GMBH & CO KG
Description
TRANSFORMER FLYBACK LT3799 100UH 10%; Inductance:100µH; DC R...
Manufacturer Lead Time
Not specified

Our team will assist you shortly.

Product Attributes

Type Description
Category
Type For AC/DC Converters
Intended Chipset LT3799
Voltage - Primary 120 ~ 375V
Voltage - Auxillary -
Voltage - Isolation 4500Vrms
Frequency 75kHz
Operating Temperature -
Mounting Type Through Hole
Size / Dimension 43.18mm L x 39.60mm W
Height - Seated (Max) 30.48mm

Description

Measures resistance at forward current 75kHz for LED or diode evaluation. Shop now for premium quality electronic components at competitive prices with fast shipping.

Similar Products

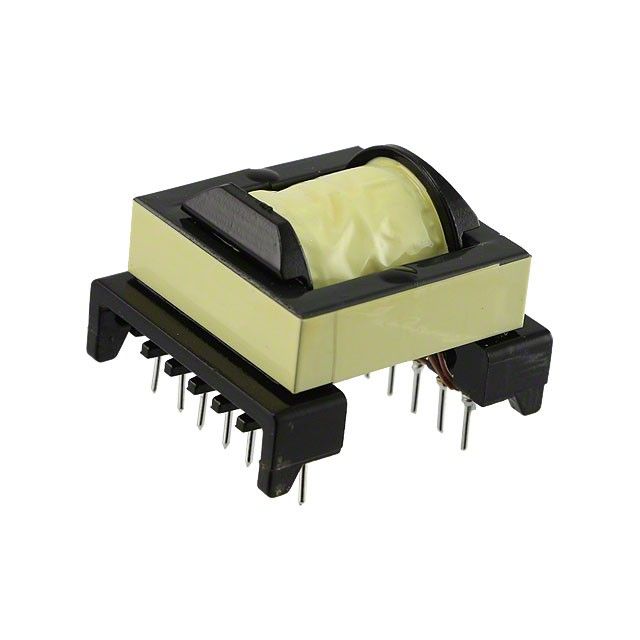

750811330
