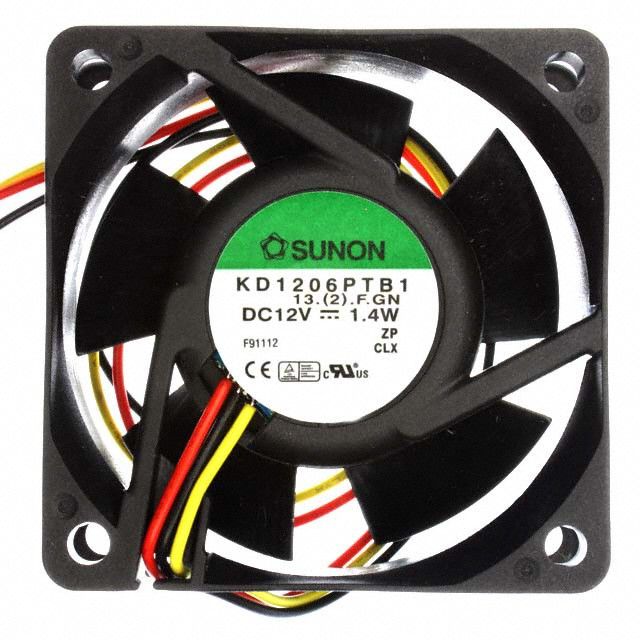

KD1206PTB1 (2).GN
Data Sheet
Attribute
Description
Manufacturer Part Number
KD1206PTB1 (2).GN
Manufacturer
Description
FAN 12VDC 60X25MM 1.4W 23.5CFM
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Type | Tubeaxial | |
| DC Fan Bearing Type | Ball | |
| Voltage Rating | 12VDC | |
| Air Flow | 23.5 CFM (0.665m³/min) | |
| Static Pressure | 0.210 in H2O (52.3 Pa) | |
| Noise | 34.5 dB(A) | |
| Power | 1.80W | |
| RPM | 4500 RPM | |
| Operating Temperature | - | |
| Termination | 2 Wire Leads | |
| Size / Dimension | Square - 60mm L x 60mm H x 25mm W |
Description
Measures resistance at forward current Tubeaxial for LED or diode evaluation. Supports high-level output current indicated as 23.5 CFM (0.665m³/min). Peak Vce(on) at Vge 0.210 in H2O (52.3 Pa) for transistor parameters.
