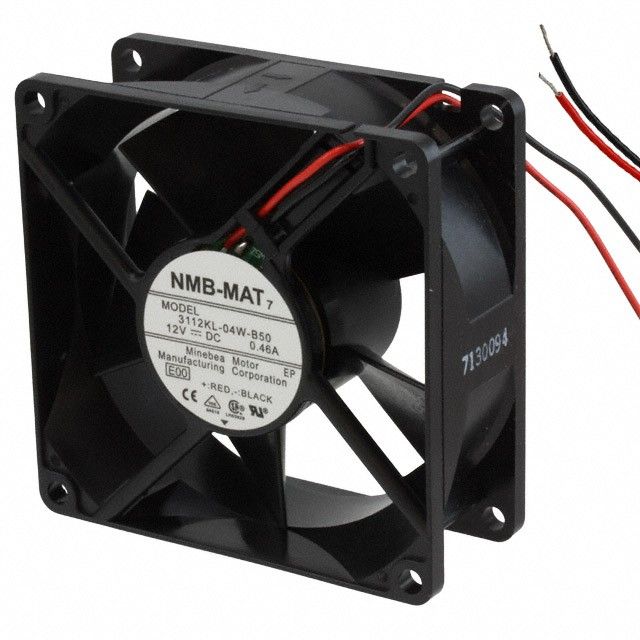

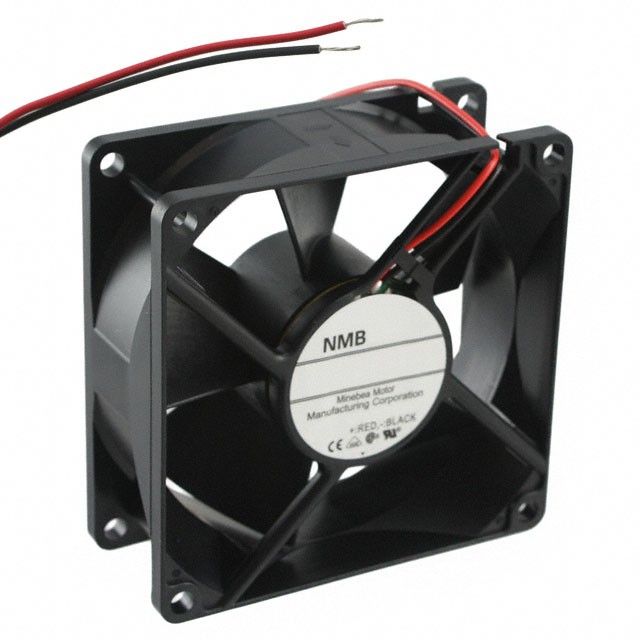

3112KL-04W-B49-E50
Data Sheet
Attribute
Description
Manufacturer Part Number
3112KL-04W-B49-E50
Manufacturer
Description
FAN DC AXIAL 12V 80X32 TAC
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| DC Fan Type | Tubeaxial | |
| DC Fan Bearing Type | Ball | |
| Voltage Rating | 12VDC | |
| Air Flow | 46.9 CFM (1.33m³/min) | |
| Static Pressure | 0.219 in H2O (54.5 Pa) | |
| Noise | 37 dB | |
| Power | 3.00W | |
| RPM | 3350 RPM | |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | |
| Termination | 3 Wire Leads | |
| Size / Dimension | Square - 80mm L x 80mm H x 32mm W |
Description
Measures resistance at forward current Tubeaxial for LED or diode evaluation. Supports high-level output current indicated as 46.9 CFM (1.33m³/min). Peak Vce(on) at Vge 0.219 in H2O (54.5 Pa) for transistor parameters.
