AD8222ACPZ-WP
Data Sheet
Attribute
Description
Manufacturer Part Number
AD8222ACPZ-WP
Manufacturer
Description
Linear - Amplifiers - Instrumentation,
OP Amps,...
Note :
GST will not be applied to orders shipping outside of India
Stock: 16
Distributor: 3
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 598.25 | ₹ 598.25 |
| 10 | ₹ 551.87 | ₹ 5,518.70 |
| 25 | ₹ 551.87 | ₹ 13,796.75 |
| 50 | ₹ 551.87 | ₹ 27,593.50 |
| 100 | ₹ 551.87 | ₹ 55,187.00 |
| 250 | ₹ 513.06 | ₹ 1,28,265.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Amplifier Type | Instrumentation | |
| Number of Circuits | 2 | |
| Output Type | - | |
| Slew Rate | 2 V/?s | |
| Gain Bandwidth Product | - | |
| -3db Bandwidth | 1.2MHz | |
| Current - Input Bias | 500pA | |
| Voltage - Input Offset | 120?V | |
| Current - Supply | 900?A | |
| Current - Output / Channel | 18mA | |
| Voltage - Supply, Single/Dual (±) | 4.6 V ~ 36 V, ?2.3 V ~ 18 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

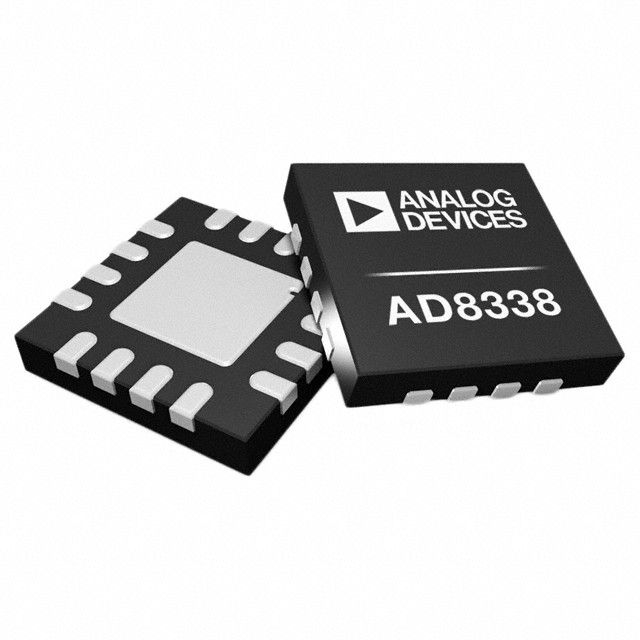

| Package / Case | 16-VQFN Exposed Pad, CSP |
Description
Provides a -3dB bandwidth of 1.2MHz to ensure consistent signal quality. Measures resistance at forward current Instrumentation for LED or diode evaluation.
