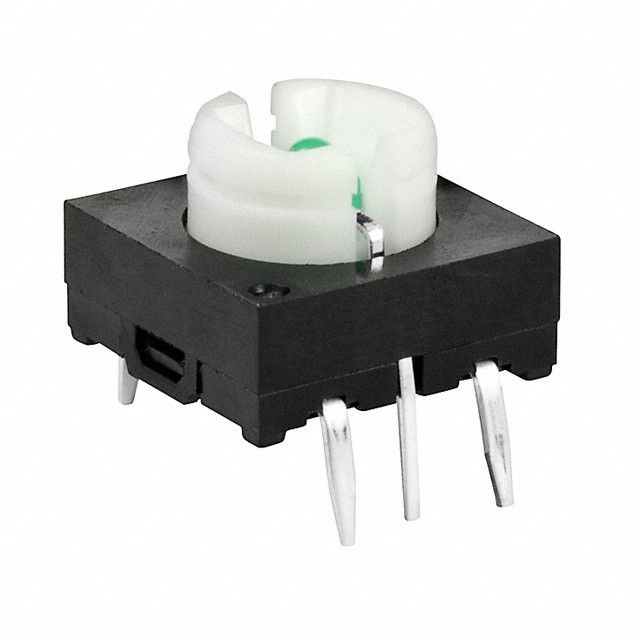

JB15LPB
Data Sheet
Attribute
Description
Manufacturer Part Number
JB15LPB
Manufacturer
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Manufacturer Lead Time
Not specified
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 24VDC | |
| Actuator Type | Plunger for Cap | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, from Pins | - | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 10.00mm x 10.00mm | |
| Illumination | Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | LED, White | |
| Operating Force | 176gf | |
| Ingress Protection | - |
Description
Measures resistance at forward current Off-Mom for LED or diode evaluation. Utilizes LED, White type of illumination for ideal lighting.
