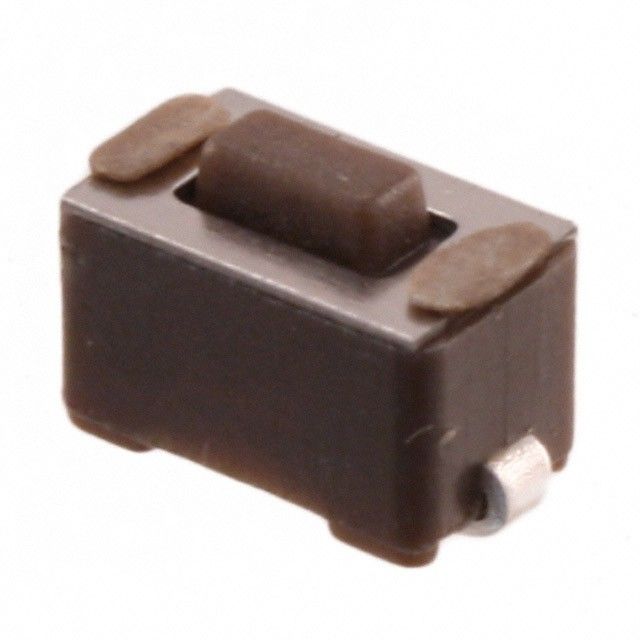

TL1107AF130WQ
Data Sheet
Attribute
Description
Manufacturer Part Number
TL1107AF130WQ
Manufacturer
Description
TL1107 Series SPST 1.3 N Rectangular Button Vertical Through...
Note :
GST will not be applied to orders shipping outside of India
Stock: 5200
Distributor: 1
Authorized
Lead Time: 3 Working Days
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 21.27 | ₹ 21.27 |
Stock: 1000
Distributor: 2
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 27.00 | ₹ 27.00 |
Stock: 1
Distributor: 3
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 36.25 | ₹ 36.25 |
| 10 | ₹ 28.97 | ₹ 289.70 |
| 100 | ₹ 26.13 | ₹ 2,613.00 |
| 250 | ₹ 22.34 | ₹ 5,585.00 |
| 500 | ₹ 18.46 | ₹ 9,230.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 12VDC | |
| Actuator Type | Rectangular Button | |
| Mounting Type | Through Hole | |
| Actuator Height off PCB, from Pins | 4.30mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | PC Pin | |
| Outline | 6.00mm x 3.50mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 130gf | |
| Ingress Protection | - |
Description
Keeps a distance of 4.30mm from the PCB surface. Measures resistance at forward current Off-Mom for LED or diode evaluation.
