Attribute
Description
Manufacturer Part Number
STD80N6F6
Manufacturer
Description
No description available
Note :
GST will not be applied to orders shipping outside of India
Stock: 2500
Distributor: 6
Traceability
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 77.15 | ₹ 1,92,875.00 |
Stock: 1512
Distributor: 2
Lead Time: Not specified
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 136.50 | ₹ 136.50 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| FET Type | MOSFET N-Channel, Metal Oxide | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) | |
| Rds On (Max) @ Id, Vgs | 6.5 mOhm @ 40A, 10V | |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 122nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7480pF @ 25V | |
| Power - Max | 120W | |
| Mounting Type | Surface Mount | |

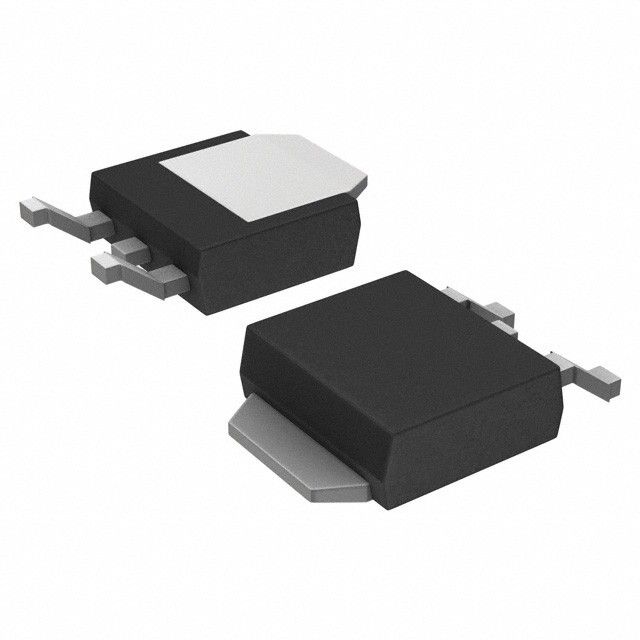

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Description
Measures resistance at forward current MOSFET N-Channel, Metal Oxide for LED or diode evaluation. Peak Rds(on) at Id 6.5 mOhm @ 40A, 10V for MOSFET efficiency.
